At JDK Hosting, we take pride in the service we provide to our customers; therefore, we ensure our equipment and network are the best in the business. We do not cut corners when it comes to our hardware or network.

Our network is compromised of servers located in the Caro.net, Saavis and Databank data centers. Specifications for our network and each datacenter can be read below.

Overview

Our network is designed to be fully redundant and self healing from top to bottom. The only single possible point of failure is the connection to the physical server which limits any risk to a single rack or server. Each Foundry EI-4802CF access switch dual uplinks to a Foundry FESX-424 allowing for local layer 3 switching, policy assignment and egress DoS protection. The FESX provides redundant service by utilizing VSRP/VRRP ensuring that both layer 2 and layer 3 traffic has an alternate path in the event of a failure.

Each FESX connects via 10GbE to one of a paired Force10 E600's which act as layer 3 aggregation routers. In addition to the direct connections to the E600's, each FESX connects to its hot-spare through a dedicated 10GbE connection ensuring that in the event of a physical network cable/fiber cut the device does not need to degrade its master status and can continue passing traffic through its hot spare thus limiting the amount of actions taking place in the event of a minor failure.

The E600's interface with multiple Juniper M20's which peer with our bandwidth providers via multiple redundant OC-48 connections providing a maximum throughput of ~22Gbps. The E600's and the M20's communicate internally via iBGP allowing for extensive route mapping and traffic shaping helping us to provide you with the fastest connections and least latent path possible.

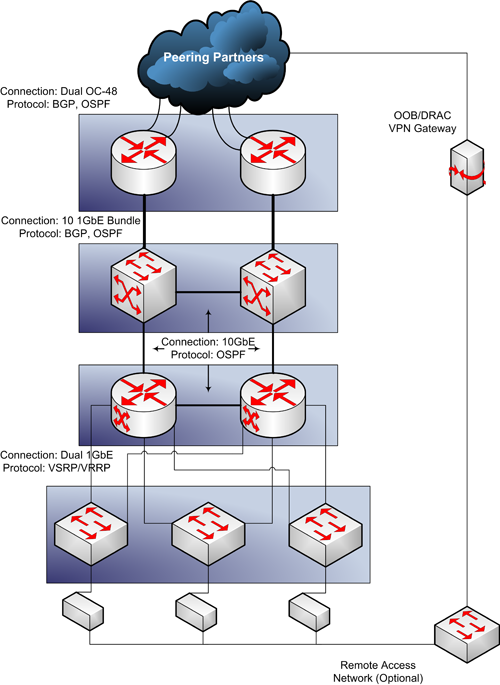

Diagram

Caro.net Data Center

Facility

Space and Environmentals

• 25,000 square feet within 2 facilities.
• Loading dock and secure equipment staging area 250 sqft.
• Cement flooring (6" with water vapor barrier).
• 7.5 inch steel reinforced tilt-up concrete walls.
• Dual actuated dry-pipe fire suppression.
• Redundant HVAC / air-cooled CRAC units.
• Customizable space for specific requirements.

Security and Client Access

• Exterior and interior closed-circuit motion sensitive video surveillance.
• Electronic proximity keycard verification access.
• Biometric palm scanner verification access.
• 3 & 4 level tiered security.
• Individually locked co-location cages and cabinets.
• Passive infrared sensors above ceiling tiles.
• Client access 24 x 7 x 365
• On-site engineers 24 x 7 x 365

Power

Generators

• 2 Detroit Diesel three-phase power backup generators with a new primary Caterpillar 3516 1000kW being installed.

UPS

• Circuit electricity supplied by UPS conditioned power.
• Multiple UPS feeds utilizing latest technology PowerWare 160kVA, 225kVA, and 500kVA UPS clusters.

Utility

• Separate transformer feeds (dedicated sources of power).

Network

Internet Providers

• Time Warner
• Level 3
• AT&T
• TelCove

Internet Connectivity (Bandwidth)

• 22 Gbps of symmetrical bandwidth.
• 6 diverse entrances into the facility
• Carrier-neutral environment.
• One of the largest networks with the lowest cost of bandwidth of any colocation / hosting provider in the southeastern USA.

Carrier-Grade Equipment

• Core routers: Juniper
• Aggregation routers: Force10 TeraScale and Foundry BigIron
• Distribution routers: Foundry FastIron

Operations

Data Center Engineers

• Managed services
• Numerous network, systems, and database certifications
• Monitoring network/equipment performance 24 x 7 x 365
• 1 hour of complimentary remote hands/eyes support per colocation client each month.

Financial & Operational Advantage

• Secure and redundant facility with backup power
• Space for clients to grow their business
• Tier 1 internet connectivity from diverse providers
• Certified engineers to assist if needed.

DataBank Data Center

• 256,000 sq ft building
• 38,000 sq ft data center
• No advertising of DataBank name (plain wrapper)
• Security managed 24/7 by permanently assigned staff  managed by a third party security company.

Network features include:

• 3.84 Tbps of switching and routing capacity designed for the needs of  Enterprise and carrier-class customers
• Multiple Gigabit Ethernet backbone trunks
• Core network is designed for “zero” packet loss
• Embedded sFlow per port supports scalable hardware-based traffic monitoring across all switch ports without impacting performance
• Multi-Homed Internet Providers

Internet Service Providers

• 2 Gbps Direct Fiber – Level 3 AS3356
• 2 Gbps Direct Fiber – Savvis AS3561
• 2 Gbps Direct Fiber – Sprint AS1239
• 2 Gbps Direct Fiber – Time Warner AS4323
• 2 Gbps Direct Fiber - Broadwing AS16852

Savvis Data Center

• 153,800 sq ft building
• No advertising of SAVVIS name (plain wrapper)
• Interior and exterior security managed 24/7 by permanently assigned staff of Wackenhut guard

Network features include:

• Based on industry-leading Juniper core routers and Cisco equipment specifically designed for the needs of Tier 1 "carrier-class" customers
• OC-48/OC-192 backbone trunks, supporting MPLS protocol
• AS3561 is consistently rated over time as having the lowest latency, lowest packet loss, and highest reliability
• SAVVIS firmly segregates Layer-2 (transmission) and Layer-3 (routing)
• Layer-2 is ATM-based for traffic management
• Core network is designed for “zero” packet loss
• SAVVIS is moving to more efficient MPLS Layer 2 protocol
